Magnetic Door Lock 500Kg in UAE

Heavy-Duty 500Kg Electromagnetic Door Lock for High-Security Access Control

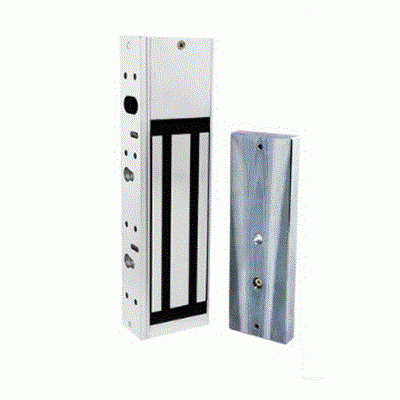

Electromagnetic Door Lock 500 Kg in Dubai UAE

• Electromagnetic Door Lock 500 Kg
• 1200Lbs Electromagnetic Lock System
• Voltage: DC12V and DC24V(adjustable)
• Holding Force: 500KG(1200Lbs)
• Single Door 500KG Magnetic Lock

Specifications:

• Lock size : 265Lx72Wx40H(mm)
• Plate : 185Lx60Wx13H(mm)
• Holding Force : 500kg(1200Lbs)
• Voltage : DC12V or DC24V (adjustable)
• Current Draw : 12V/420mA 24V/210mA
• Signal Output : Dry Contact, Max Rating of Contact Current 3A
• Surface Temp : ≤20°C
• Operating Temp : -10°C ~ 55°C (14°F~131°F)
• Suitable Humidity : 0~90%(non-condensing)
• Finishes for Shell : Anodized aluminum surface texture processing
• Finishes for Magnetic : Zinc
• Finishes for Armature : Zinc
• Weight : 4.5kg
